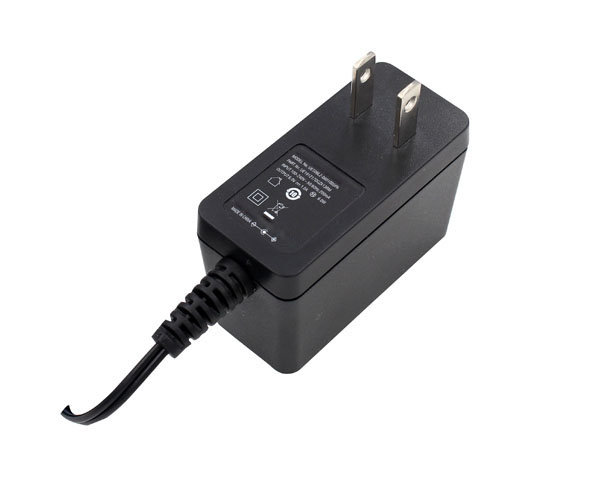

DPS06LZ-SPA
Date：2021-07-08 Hits：506
- Power：6W
- Output voltage：5V~6V
- Output current：0.01-1.0A
- Product Details
| Product Features | |
| Meets medical & I.T.E. safety | |
| 2 MOPP input to output isolation | |
| Engergy Efficiency level VI | |
| Touch current≤10μA | |
| ≤ 0.075W standby power | |
| 5V to 6V outputs,up to 5W | |
| Up to 5000m operating altitude |
Input Current
| Input | |
| Input Voltage Range | 80-264VAC |
| Frequency Range | 47-63Hz |
| Input Current | 0.2A,at 80VAC |
| Touch Leakage Current(max) | ≤ 10μA at 264VAC |
| Environmental | General | ||
| Operationg Temperature | 0〜45 ℃ | Dimensions | 62.0（L）x29.0（W）x40.0（H）mm |
| Storage Temperature | -20〜60℃ | Weight | 67g |
| Operating Humidity | 10〜90％RH, non-condensing | MTBF | > 100,000hrs MIL-HDBK-217， at 25℃ |
| Storage Humidity | 5〜90％RH | ||
| Operating Altitude | 5000m |
| Safety Approvals | ||
| Safety Agency/Mark | Medical | ITE |
| CCC | - | GB4943.1 |
| Models & Ratings | ||||||||
| Model Number | Voltage（V） | Current（A） | Rated Power | Ripple & Noise（max） | Voltage Tolerance | Line & Load Regulation | Efficiency | Start up Delay |
| DPS06LZ-XXXYYYSPA | 5.0 | 0.01-1.00 | 5.00W | 200mVpk-pk | ±5％ | Line：±1％ | 73.03% | ≤3S |
| 6.0 | 0.01-0.80 | 6.00W | 200mVpk-pk | ±5％ | Load：±5％ | 79.03% | ≤3S |
